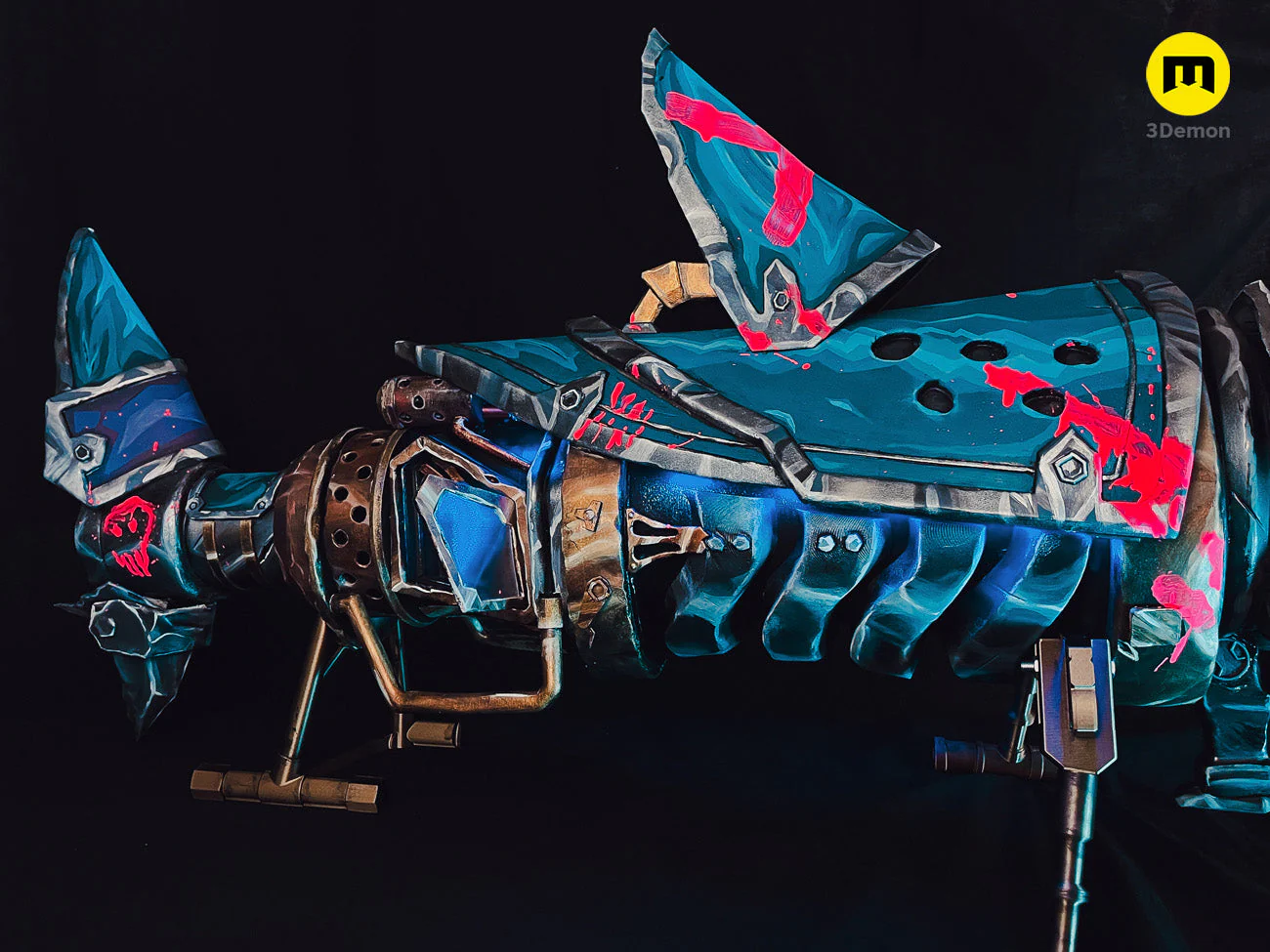

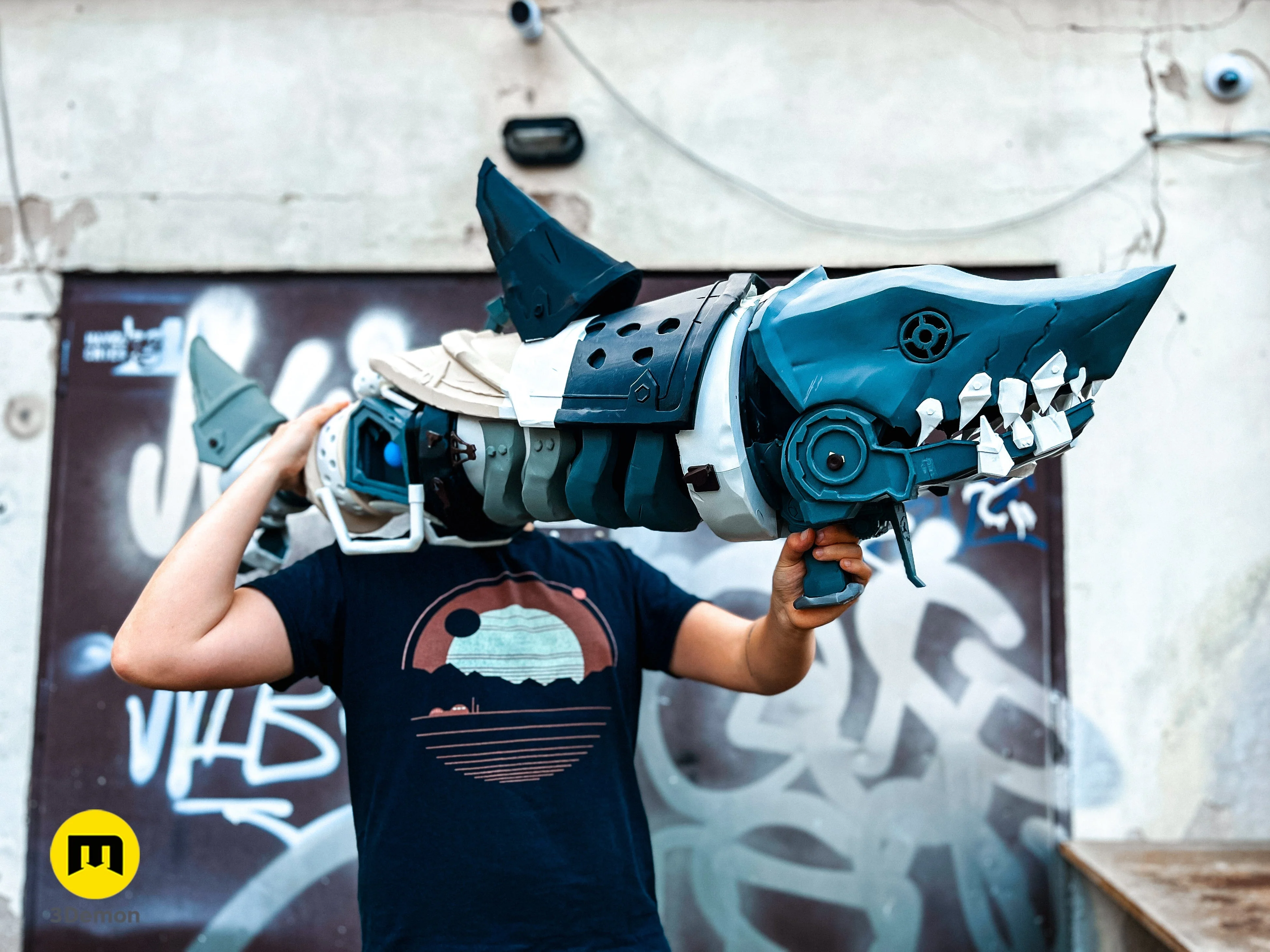

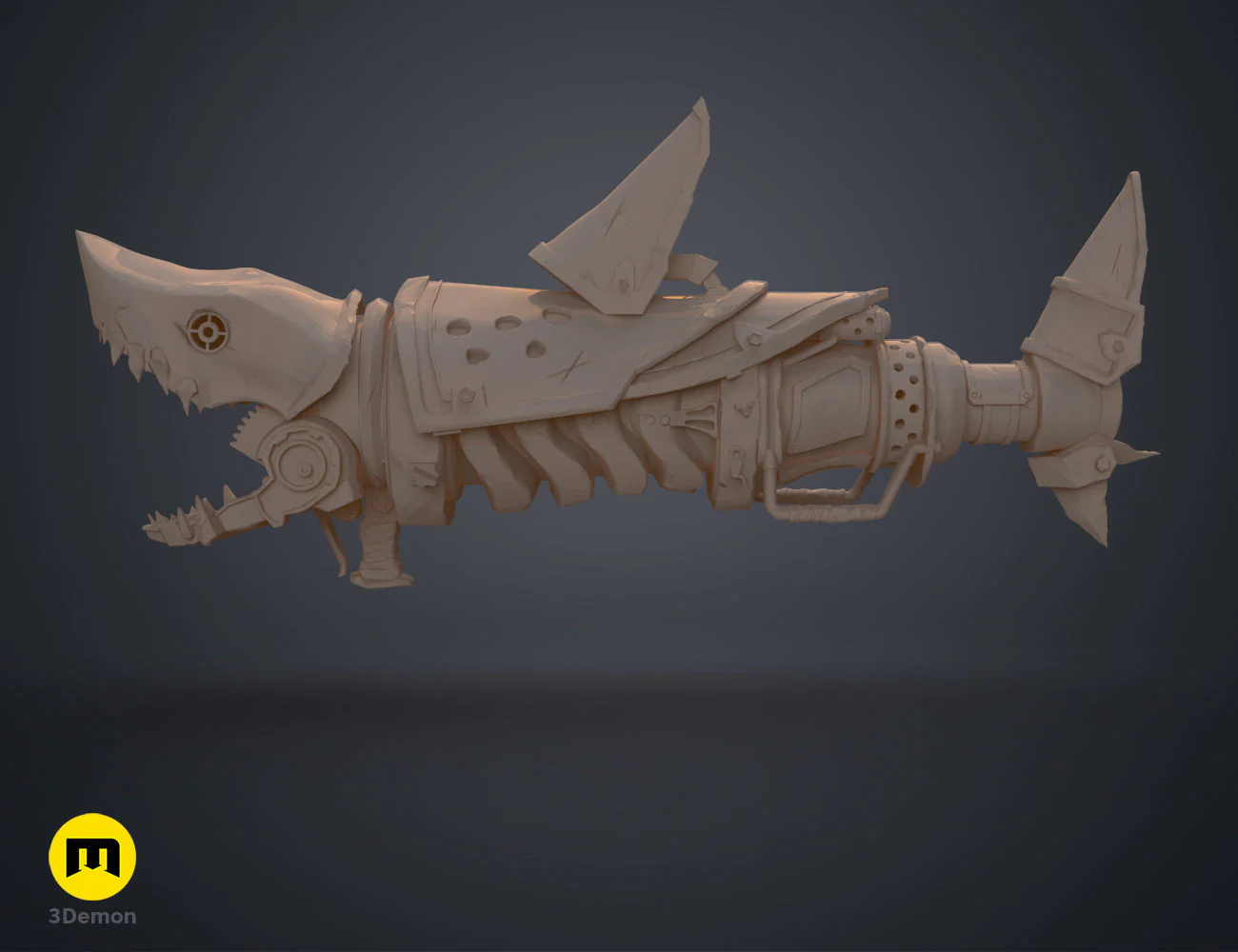

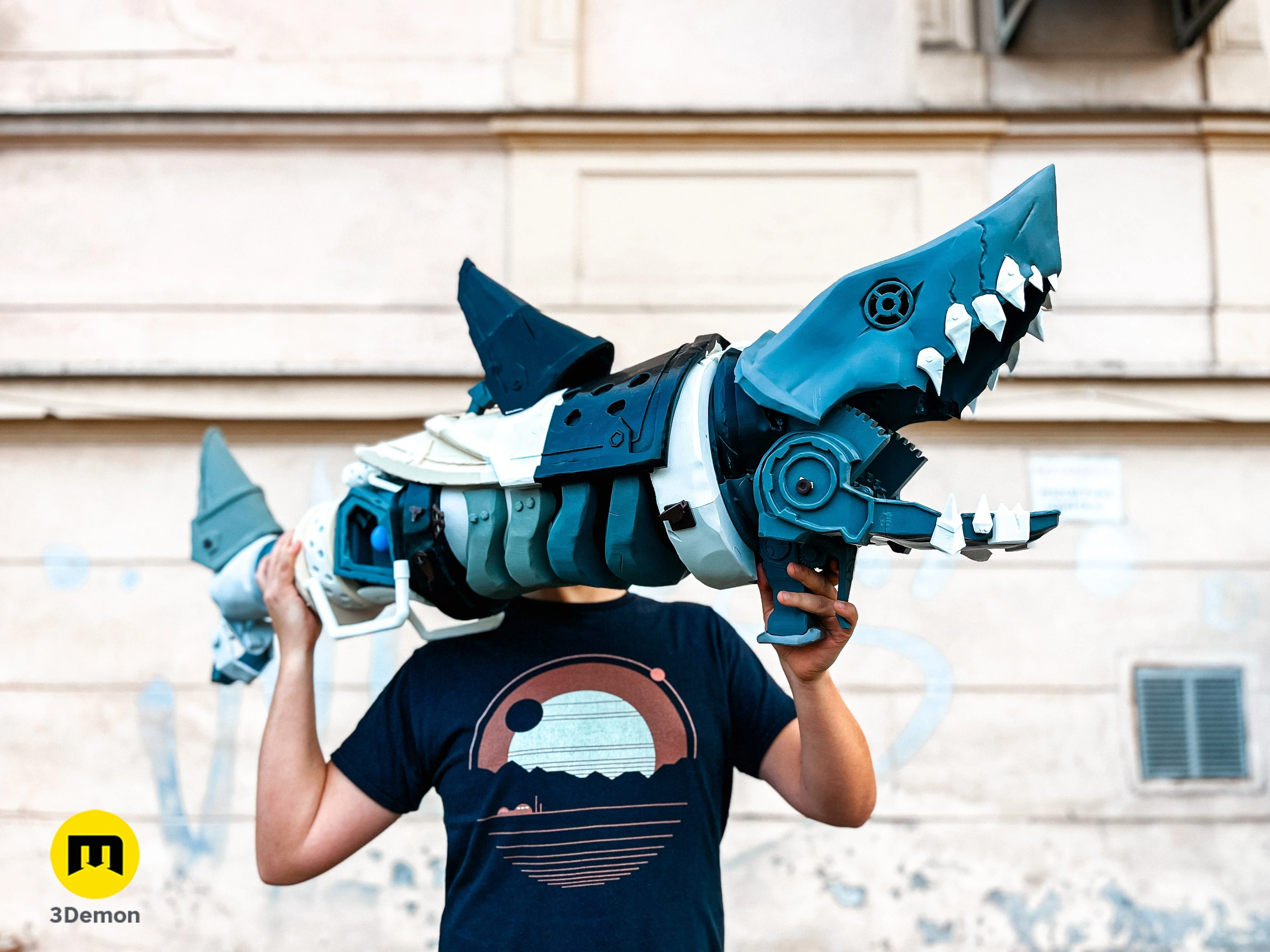

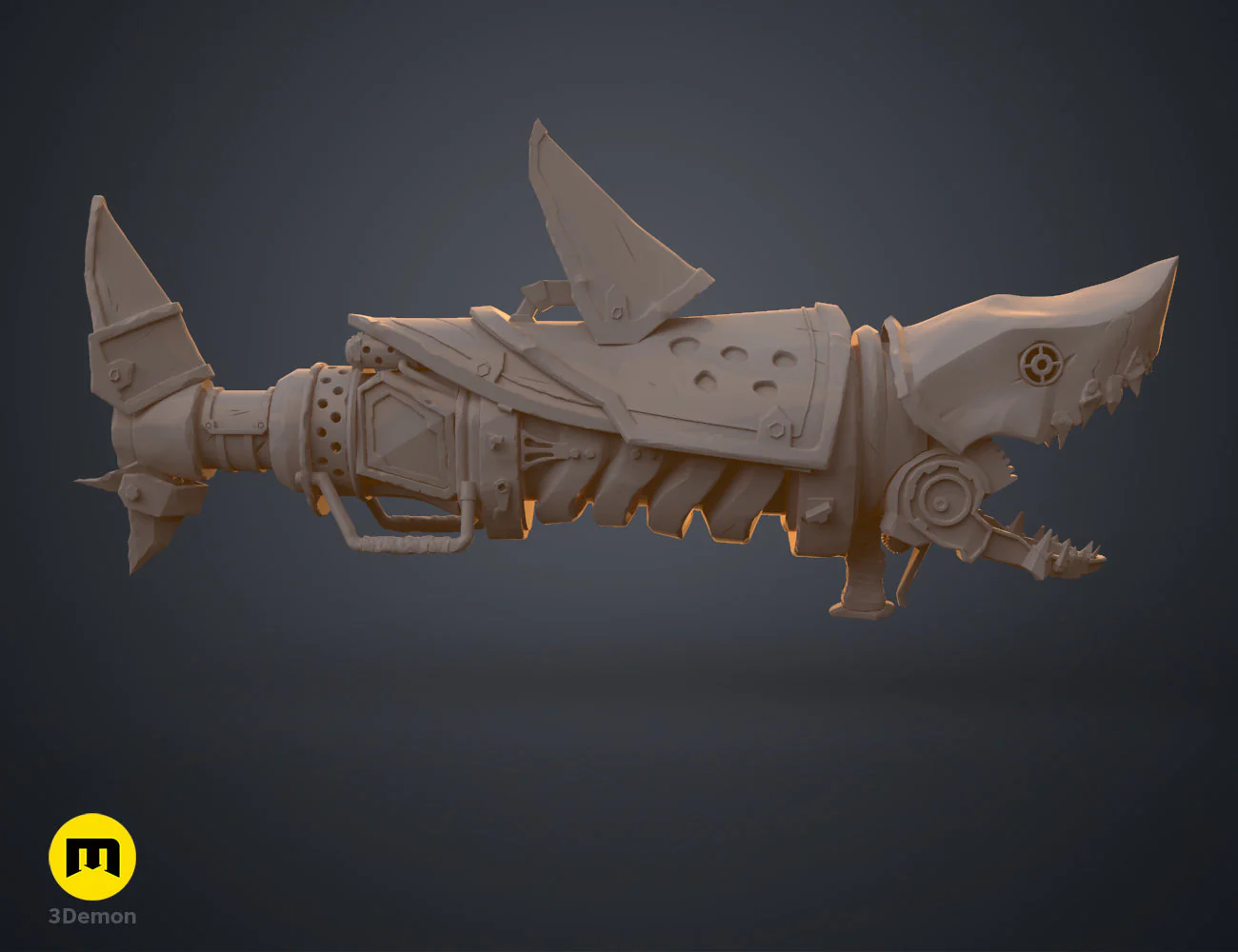

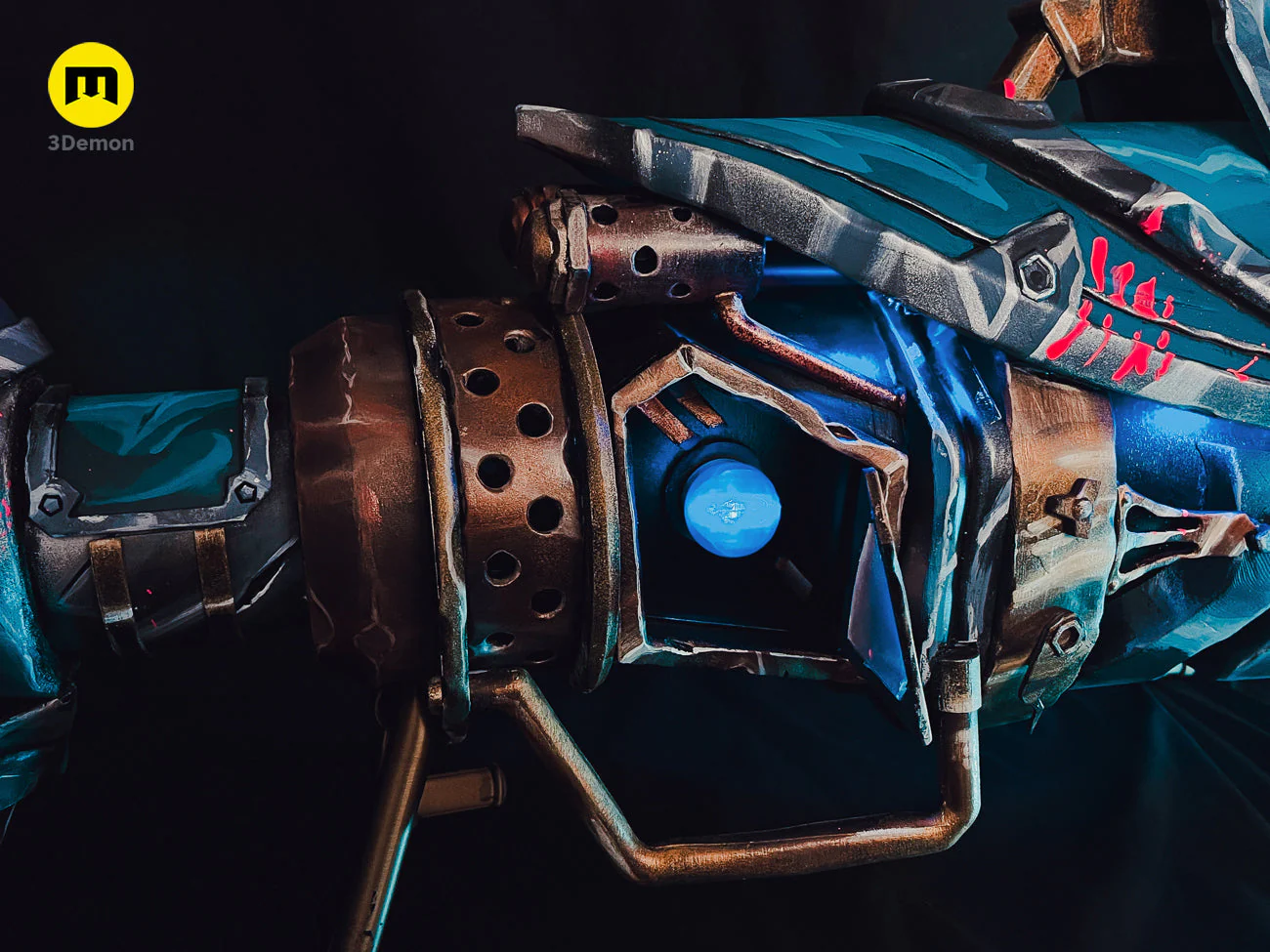

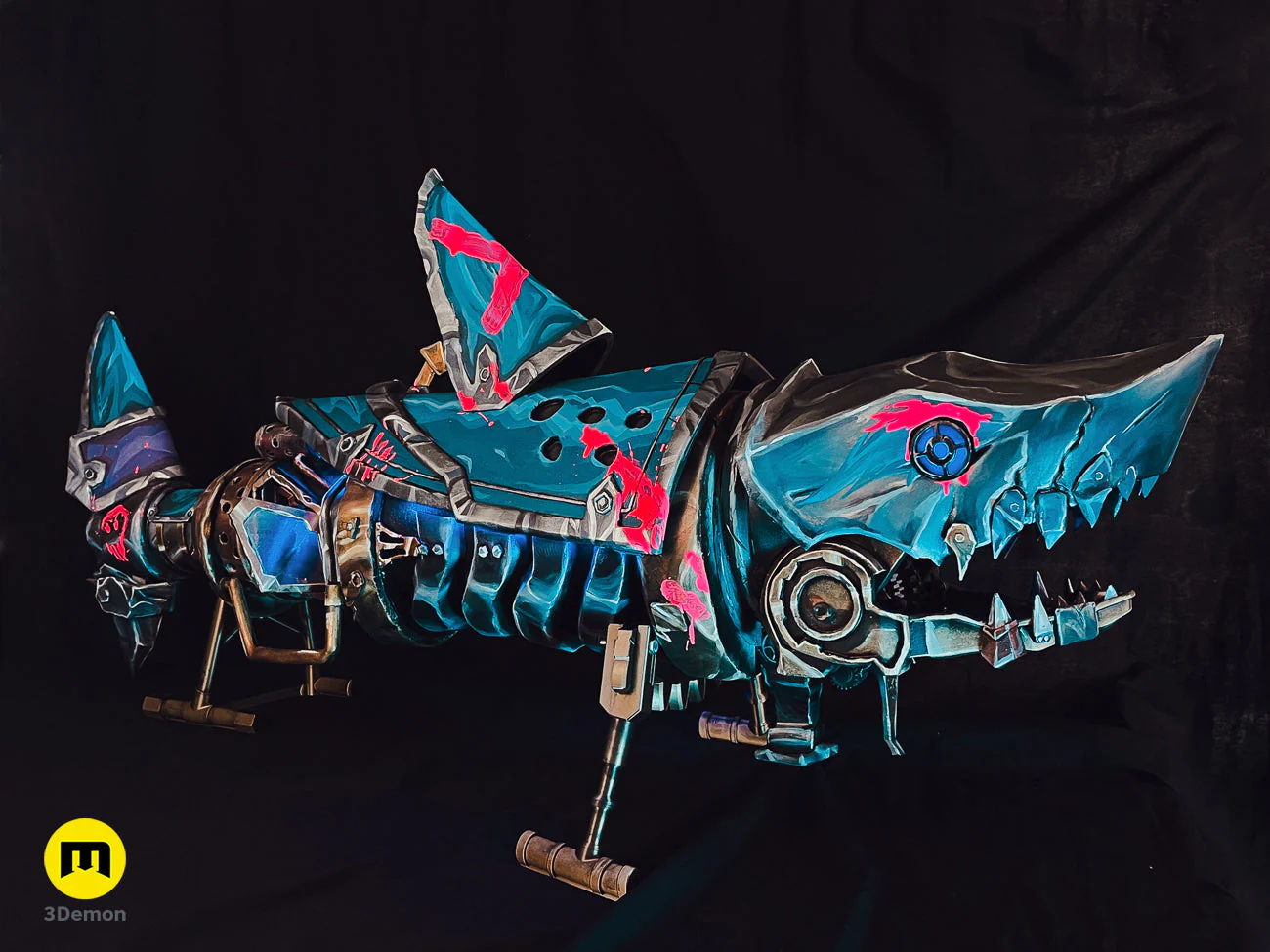

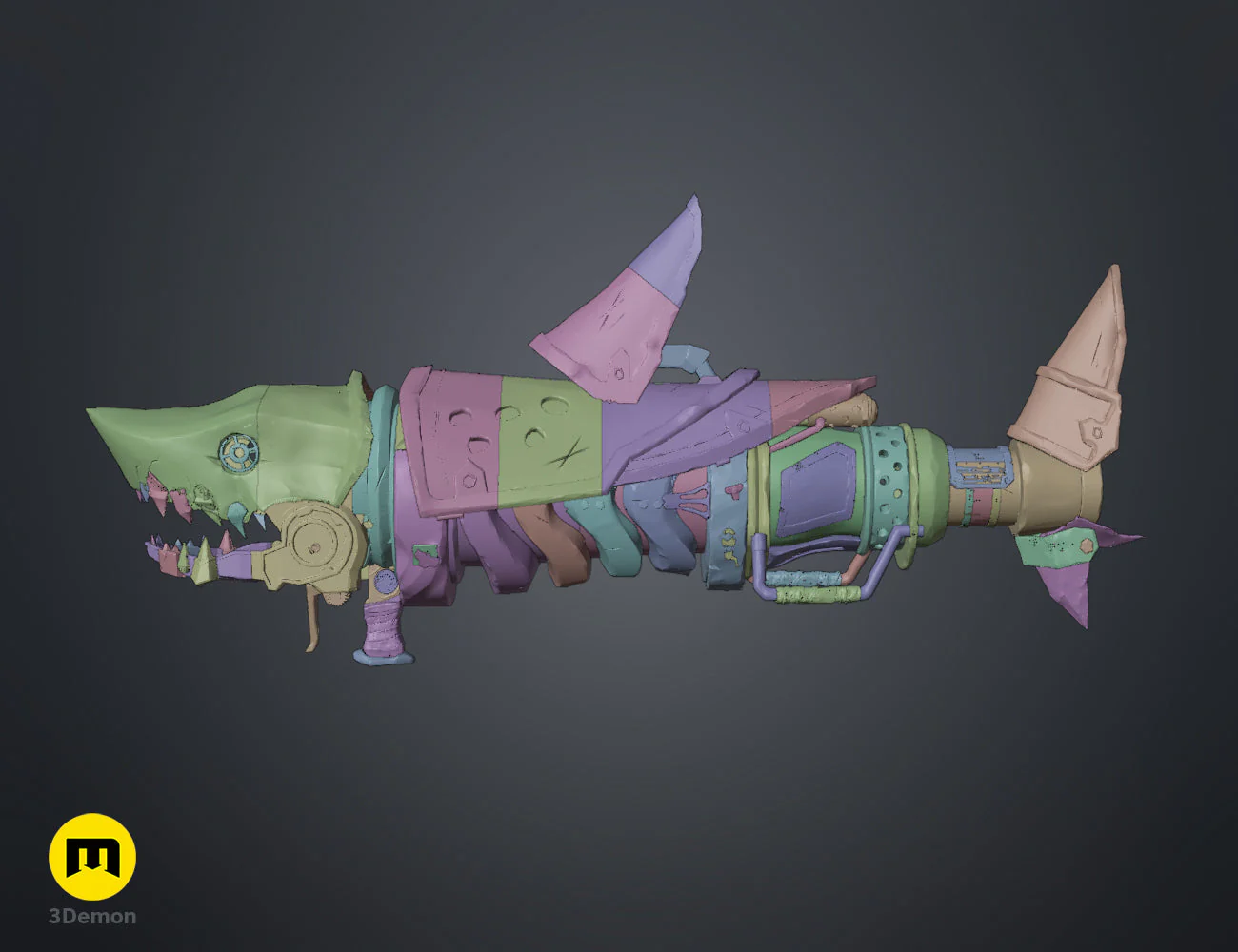

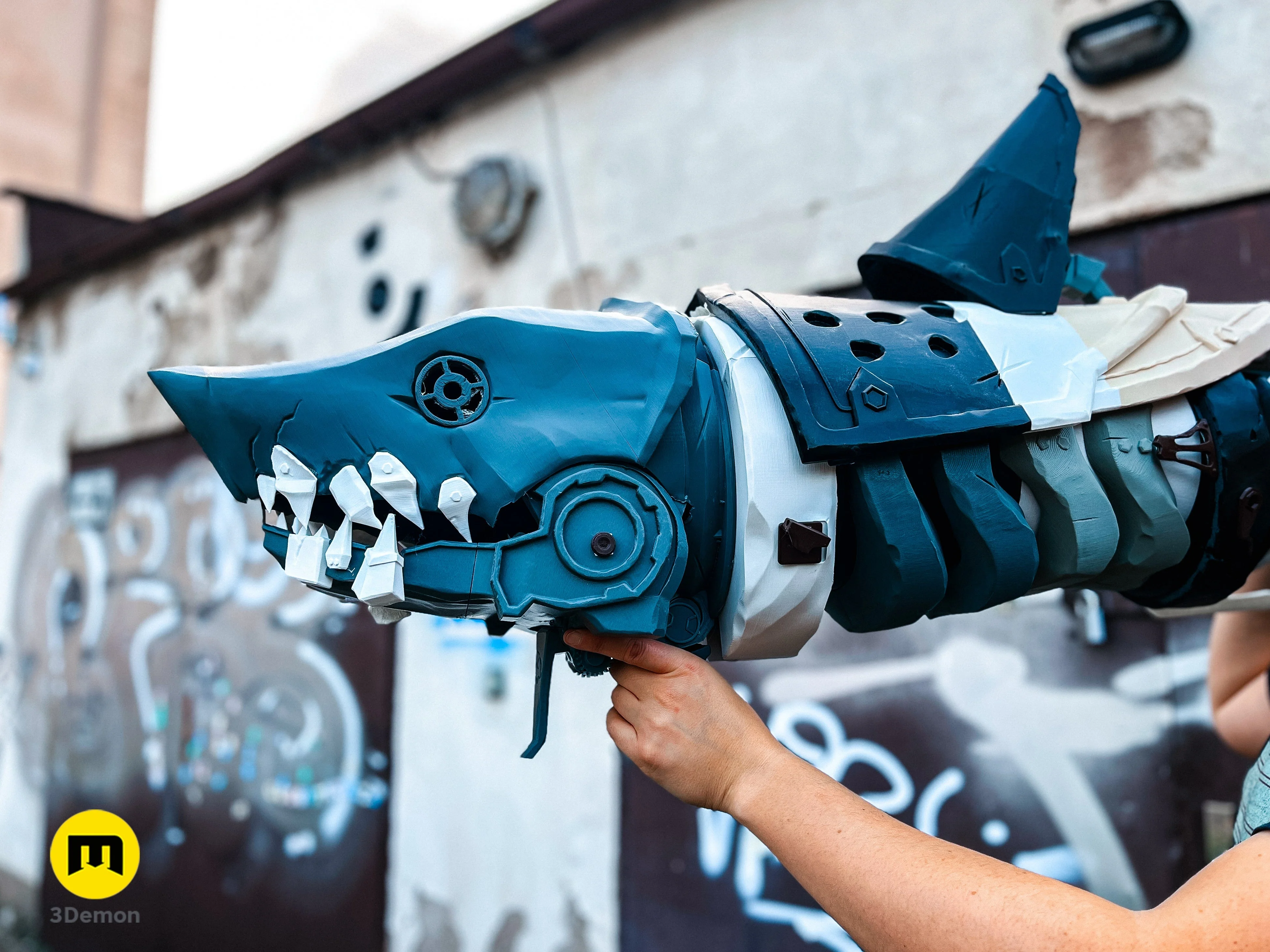

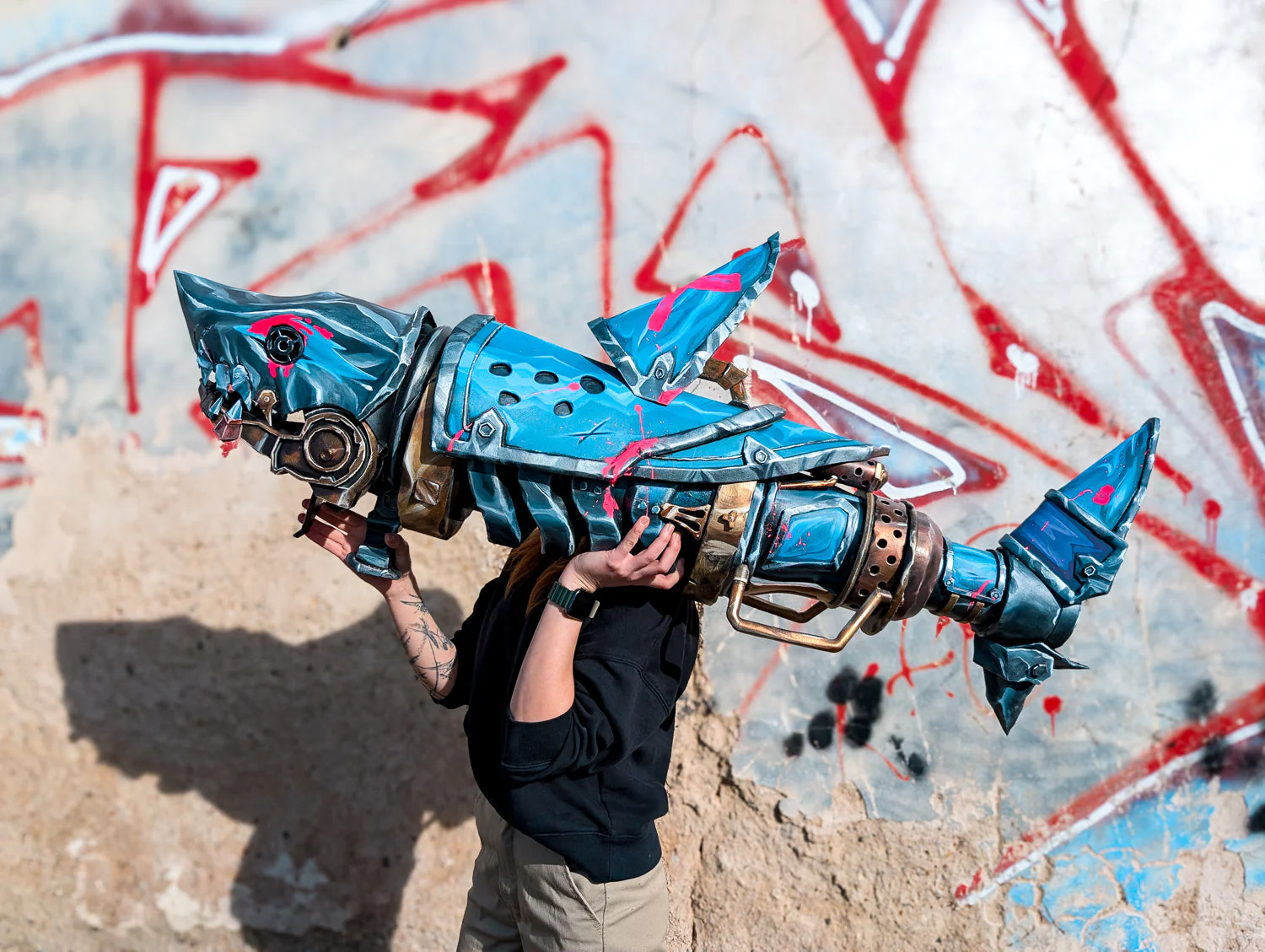

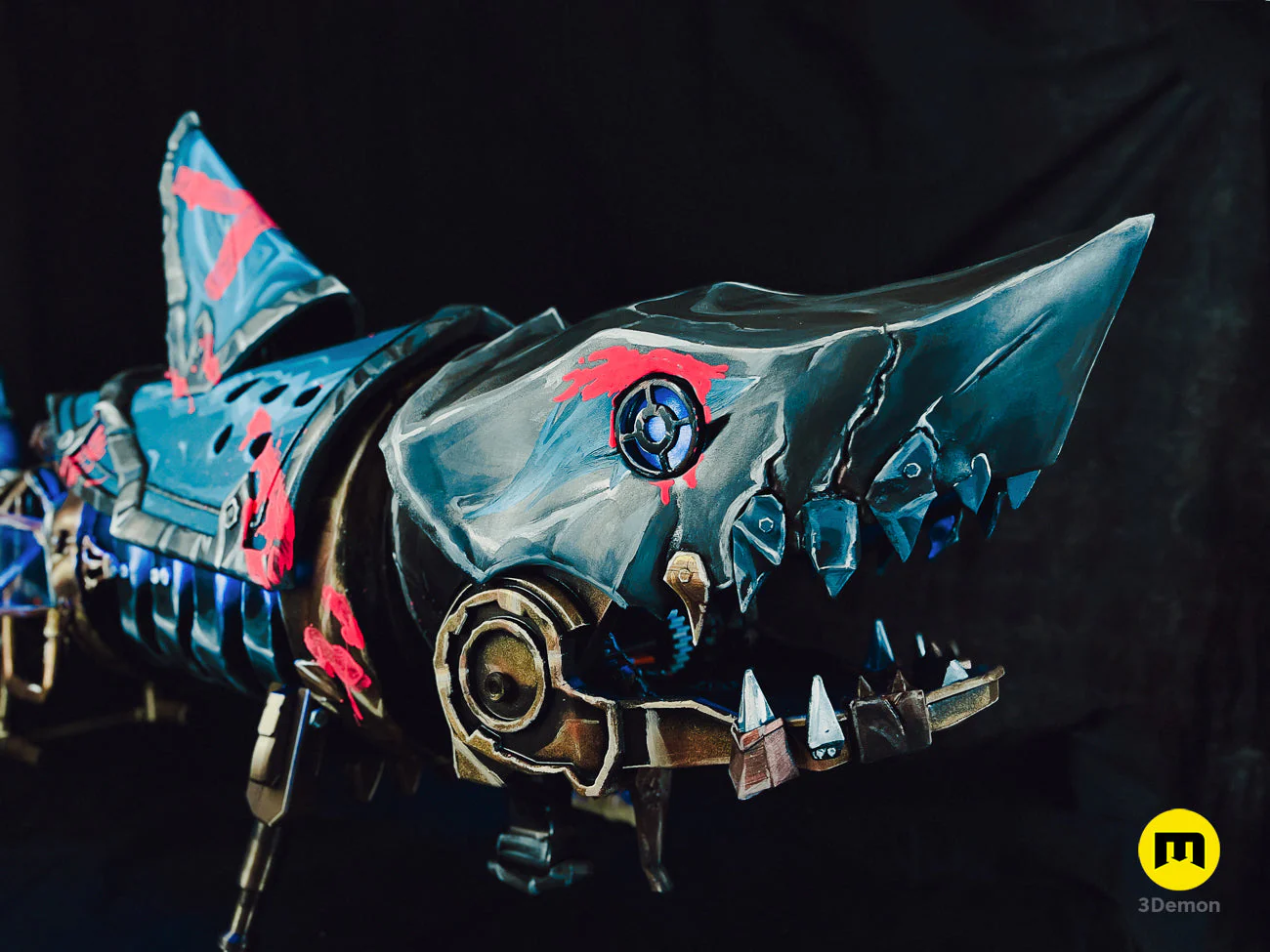

A digital 3D printable model of Jinx's rocket launcher, Fishbones, with an opening jaw from Netflix's Arcane: League of Legends.

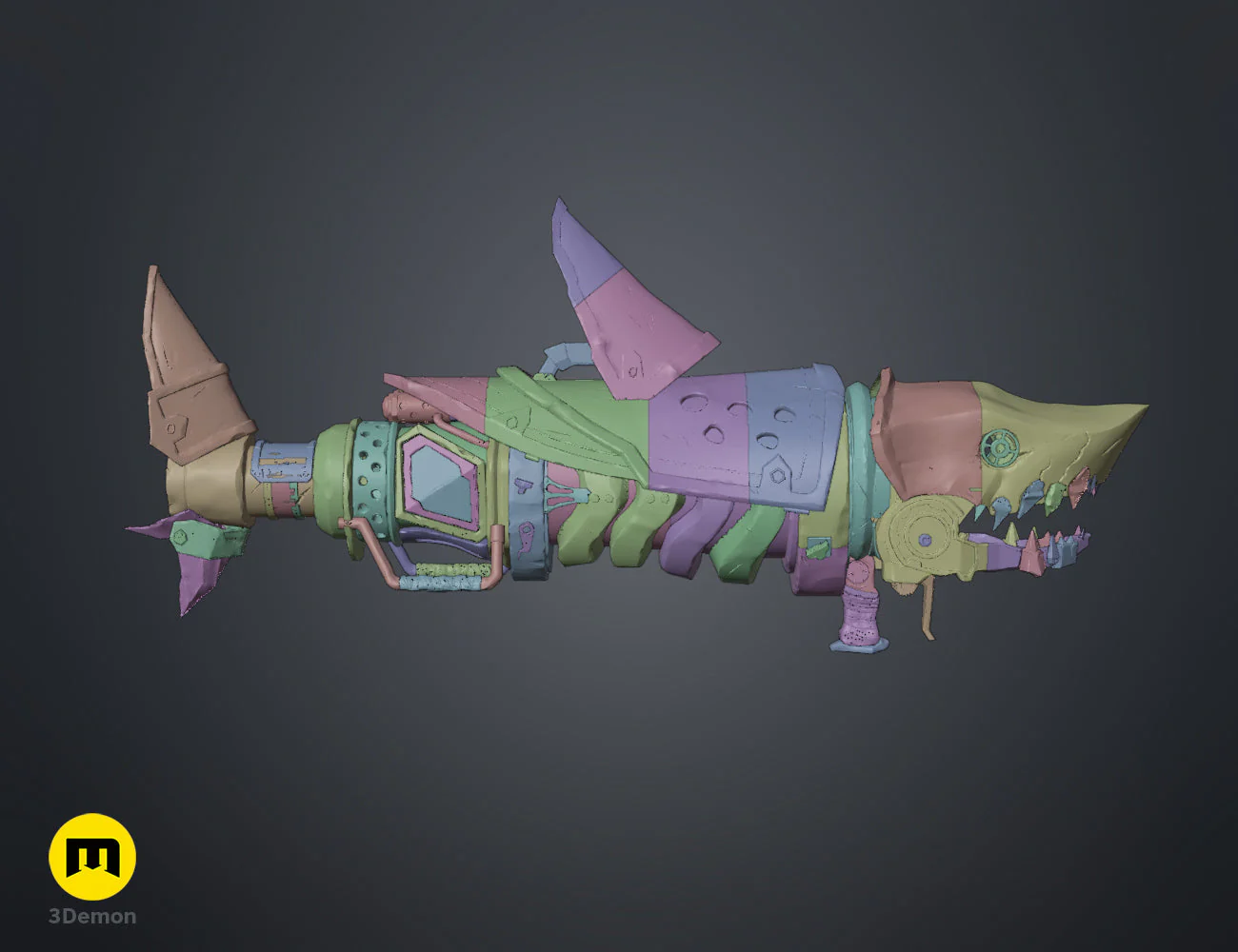

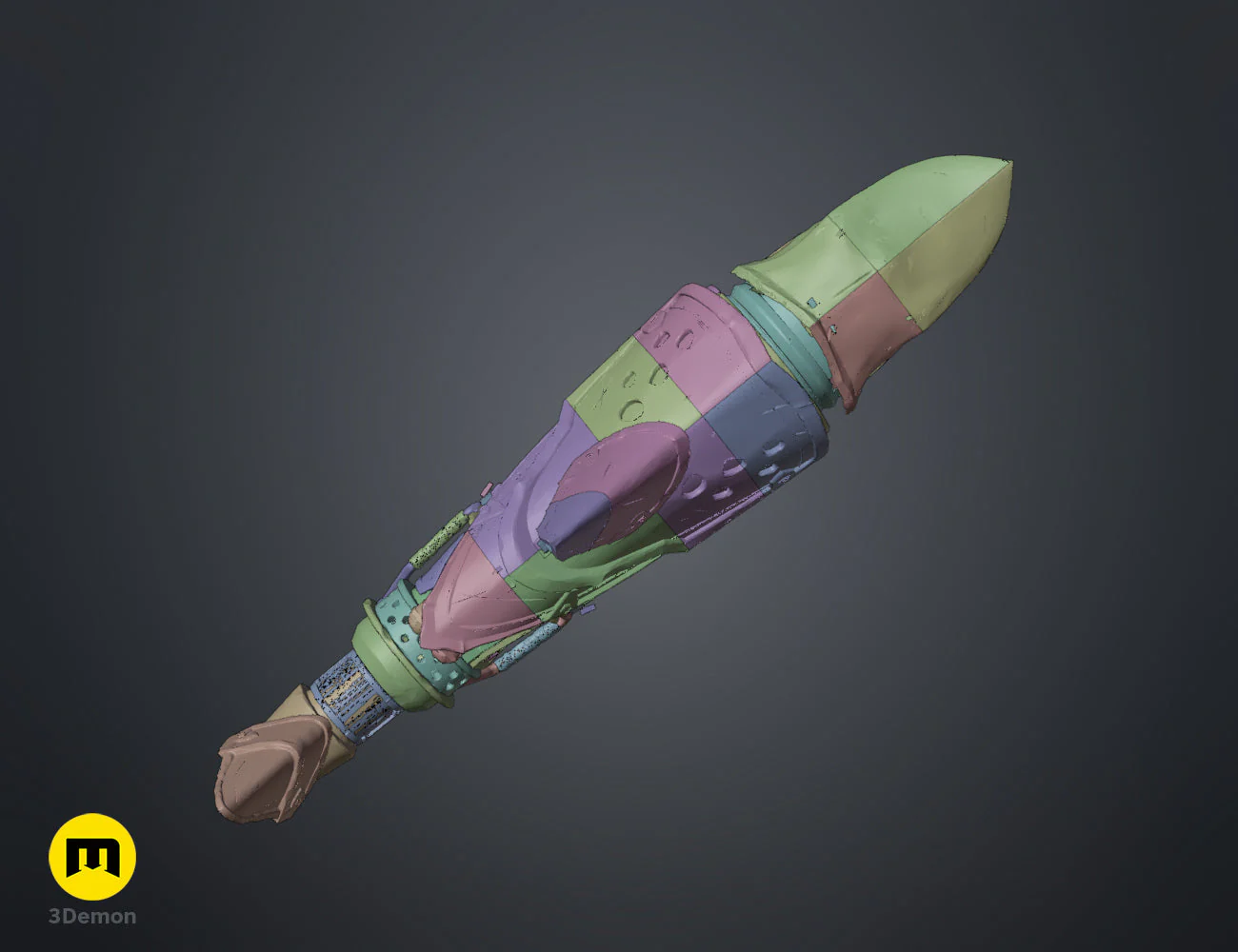

The download includes both cut parts for a 250 mm print bed, and the full, uncut model. All parts are arranged for optimal printing.

• Our Fishbones is sculpted with the highest attention to detail, creating a perfect Arcane replica

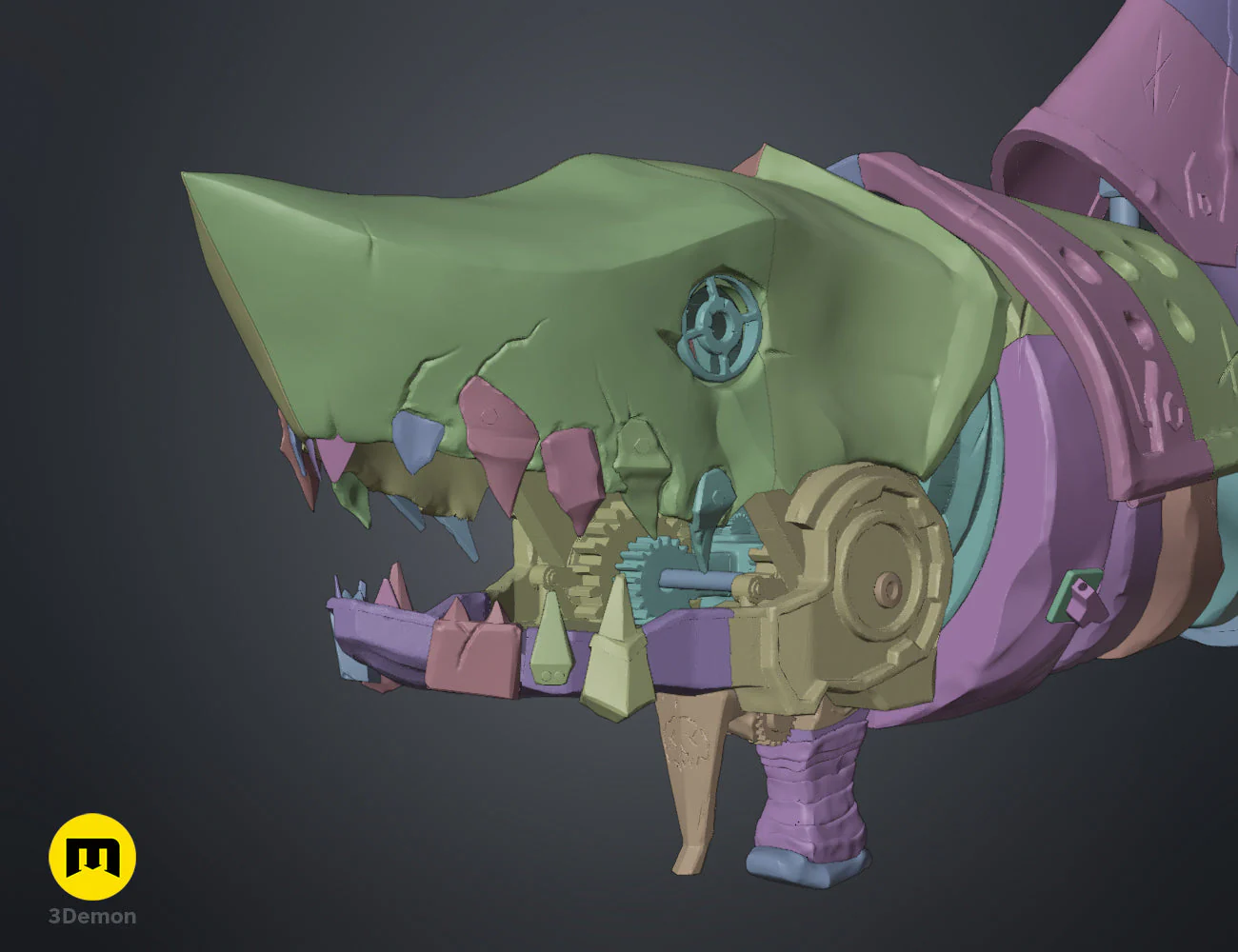

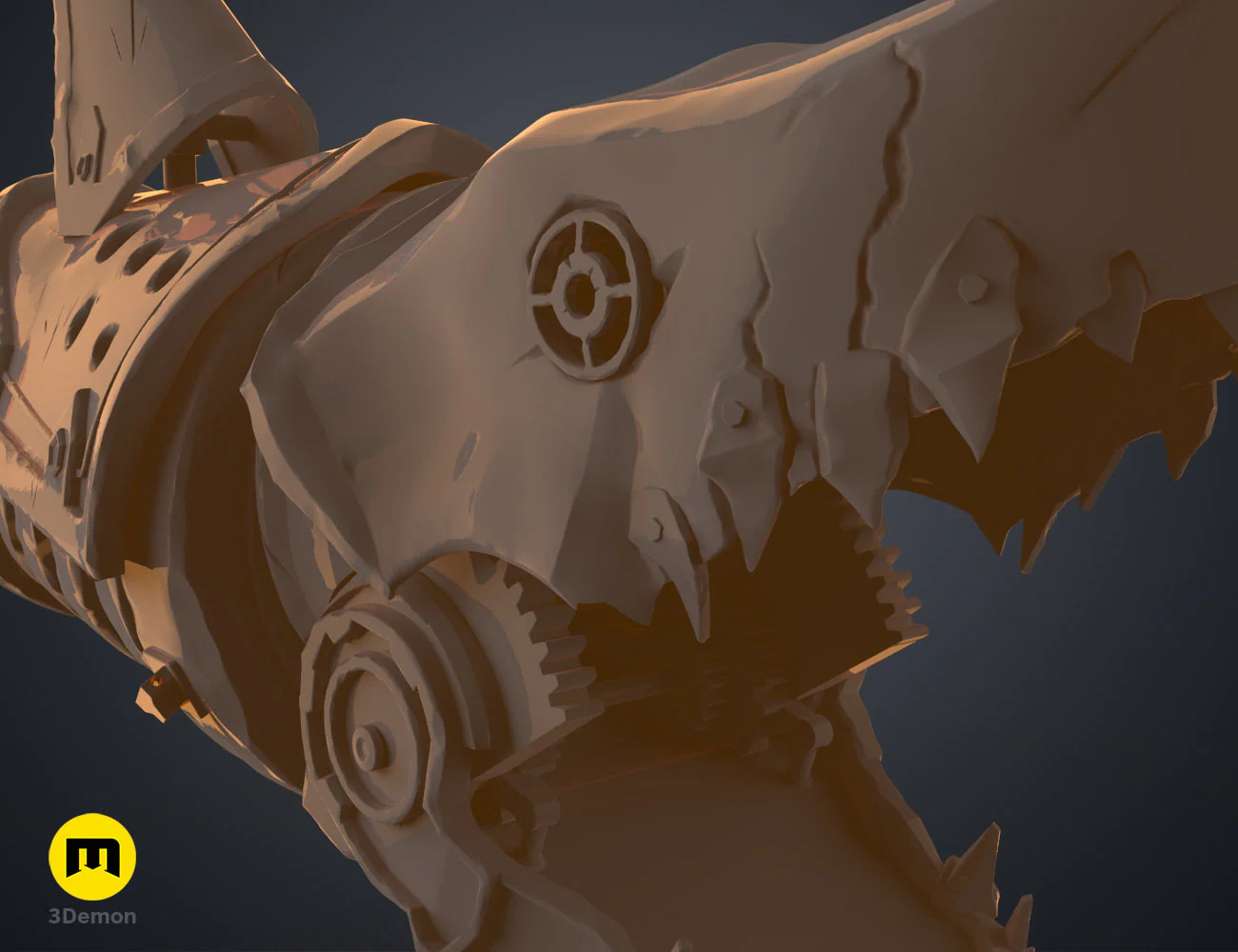

• Features an openable jaw

SIZE

At 100% scale the model’s dimensions are approximately:
Width 292 mm
Length 1310 mm
Height 582 mm
You can scale the model as you wish but we can’t guarantee that at a much smaller size, the model will print well.

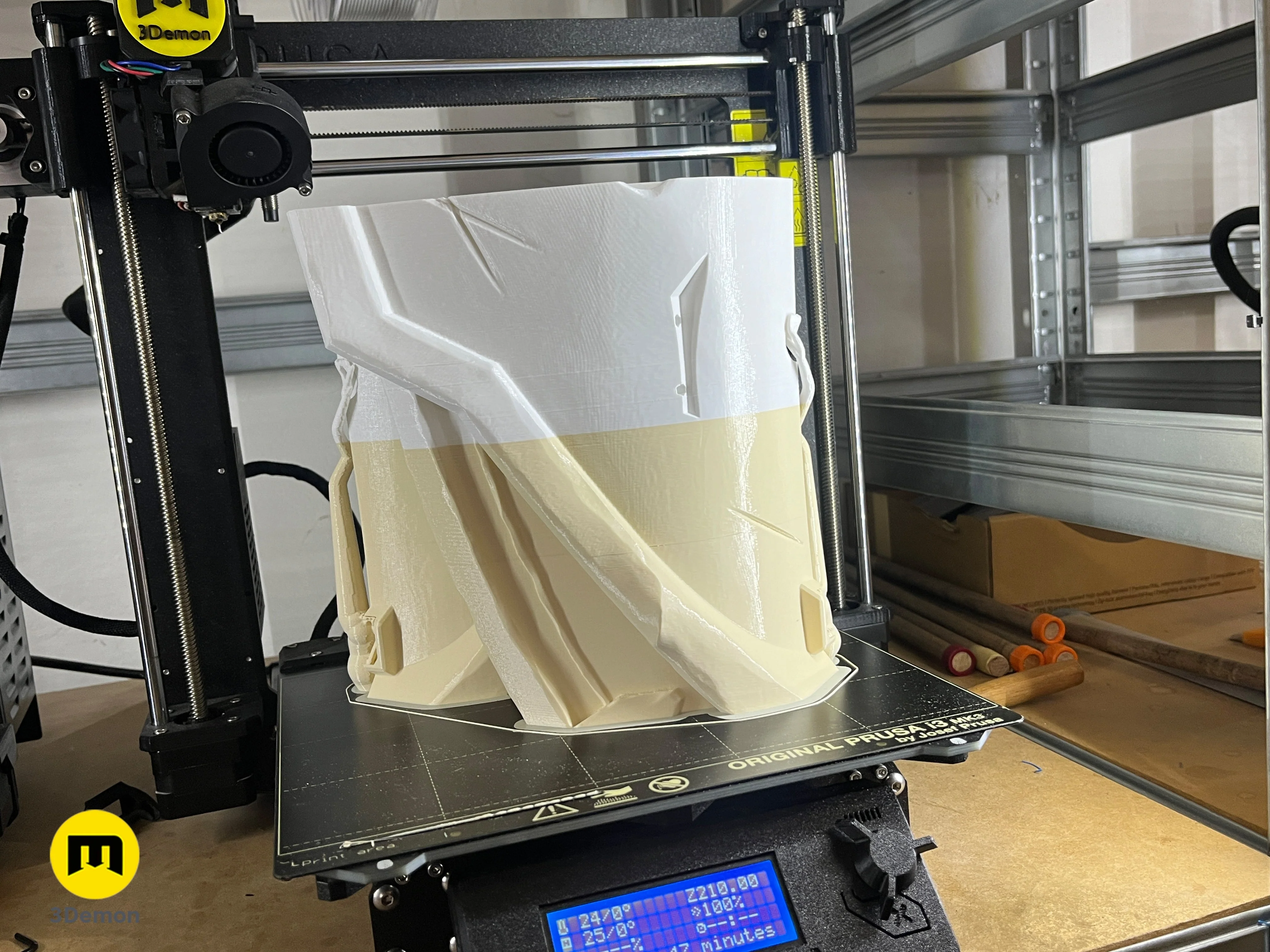

3D PRINTING SETTINGS
We use these settings for most of our prints:
Layer height 0.2 mm
Infill 15%
Supports 45°
For parts that are tall but have a small base, we use a 10 mm brim for better bed adhesion.

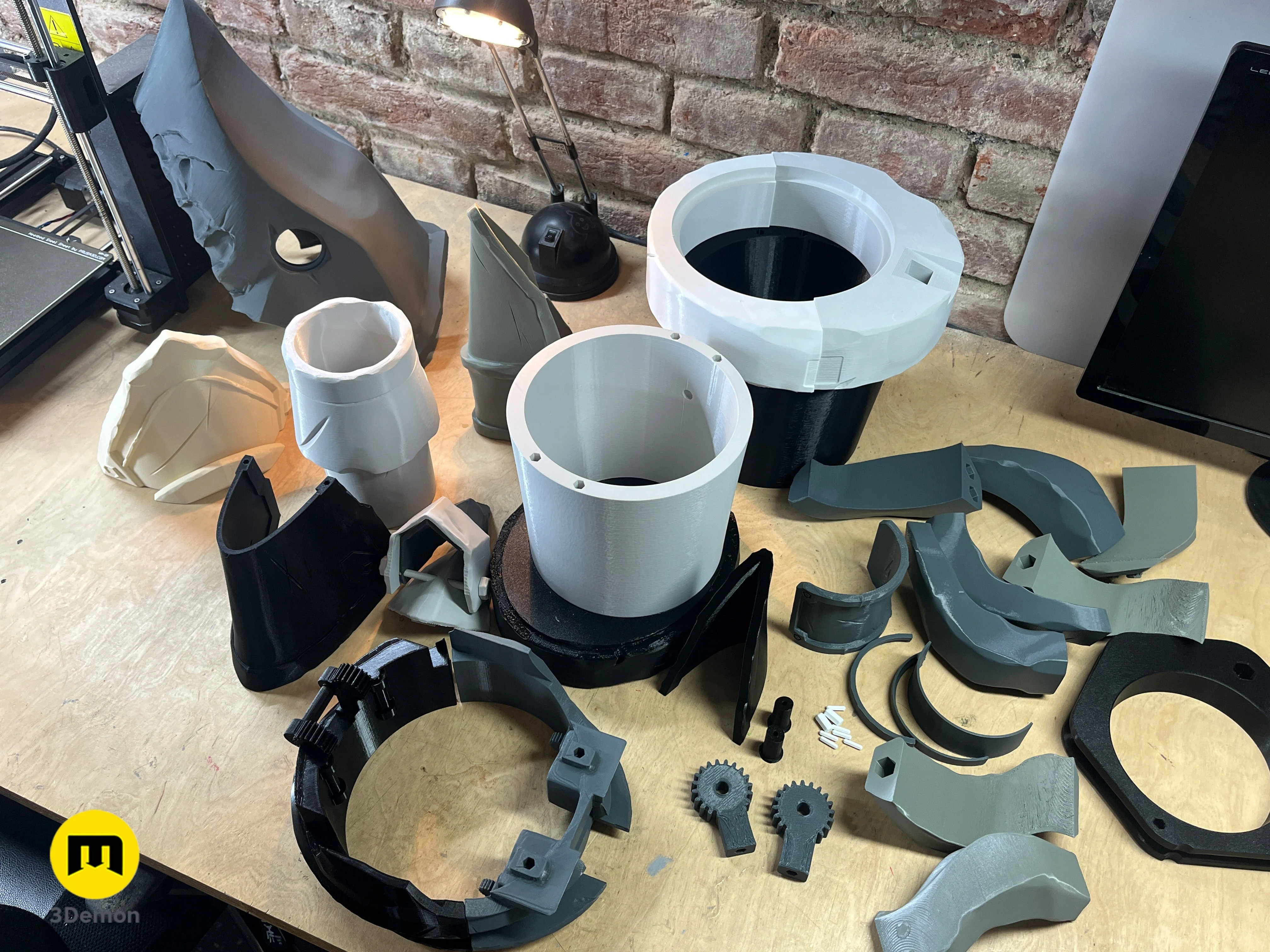

ASSEMBLY

You will need:

• Two M6 screws
• 9 M3 screws (35 mm or longer)
• Super glue

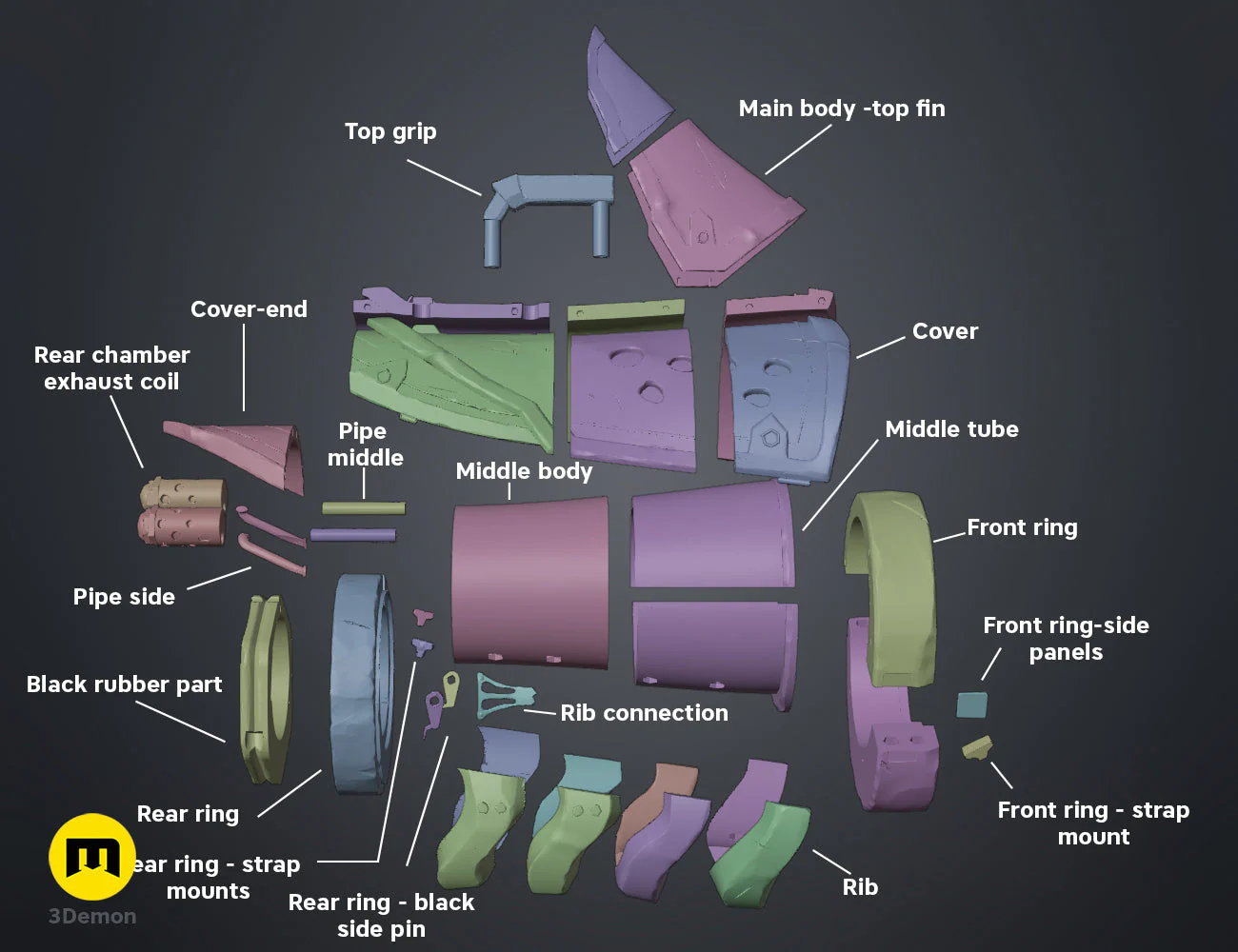

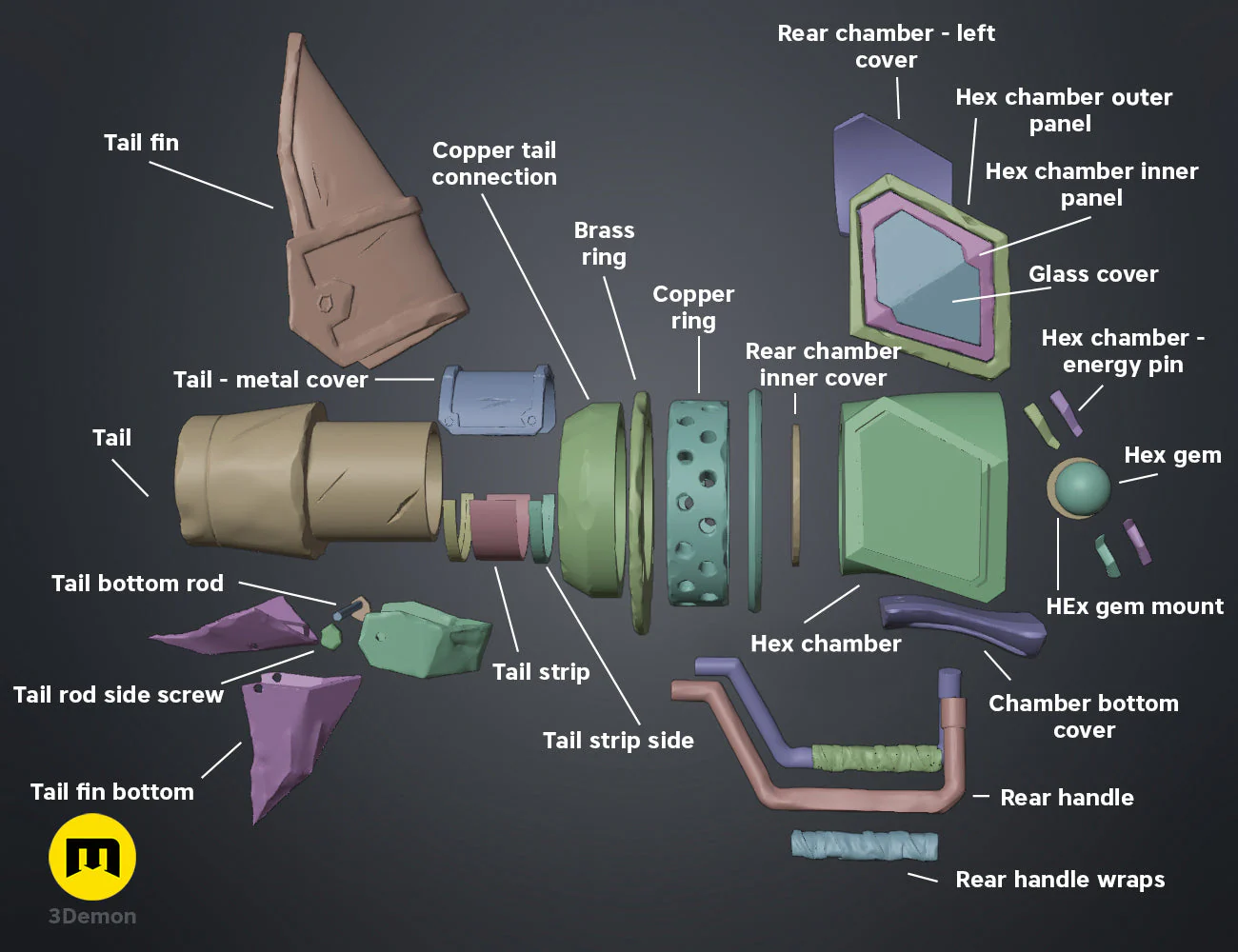

• Start with the Front Ring—it’s flat and stable.
• Stack and attach each component one on top of the other until you reach the Brass Ring-2.

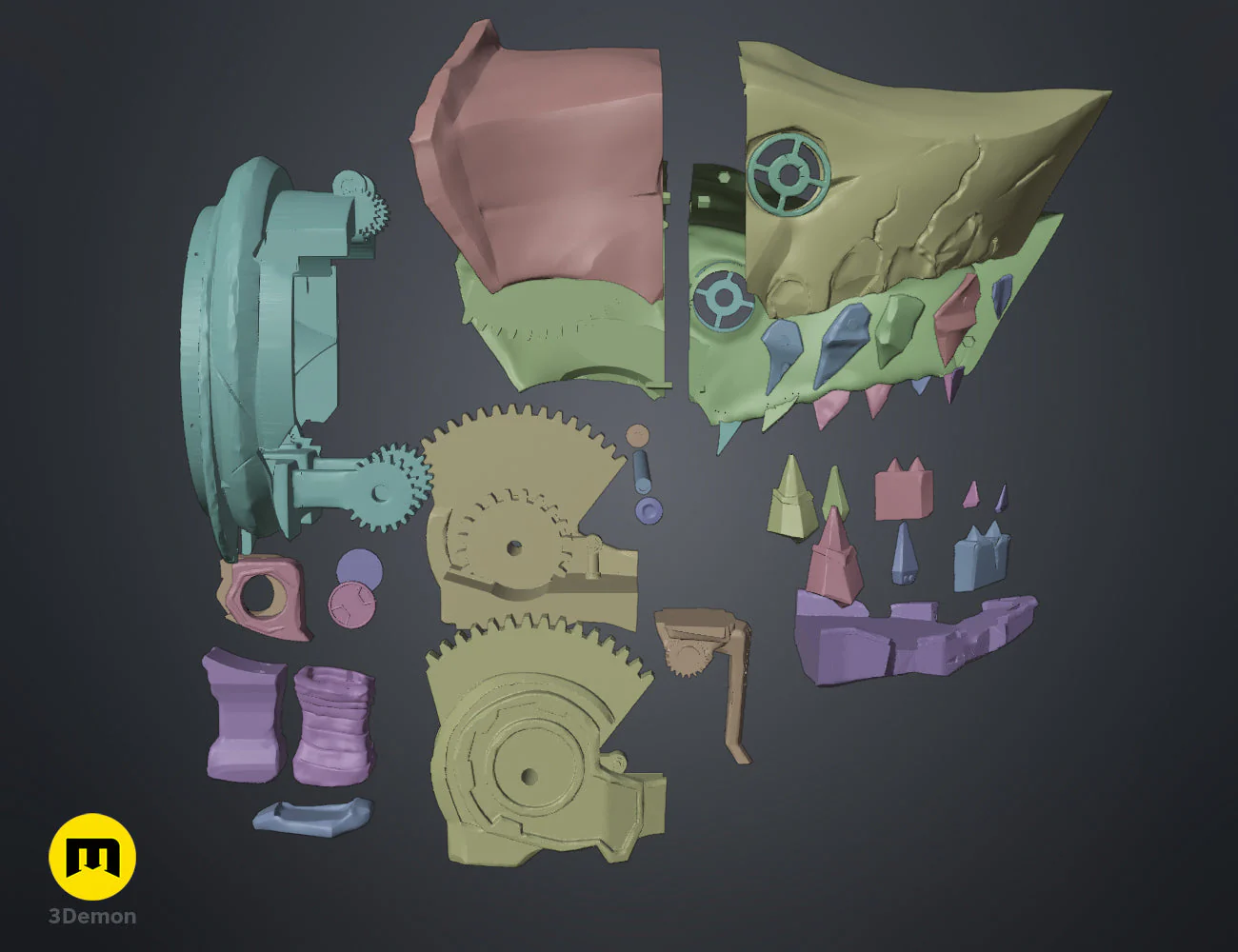

• Some parts come in multiple pieces (top/bottom or left/right). Test-fit before gluing.

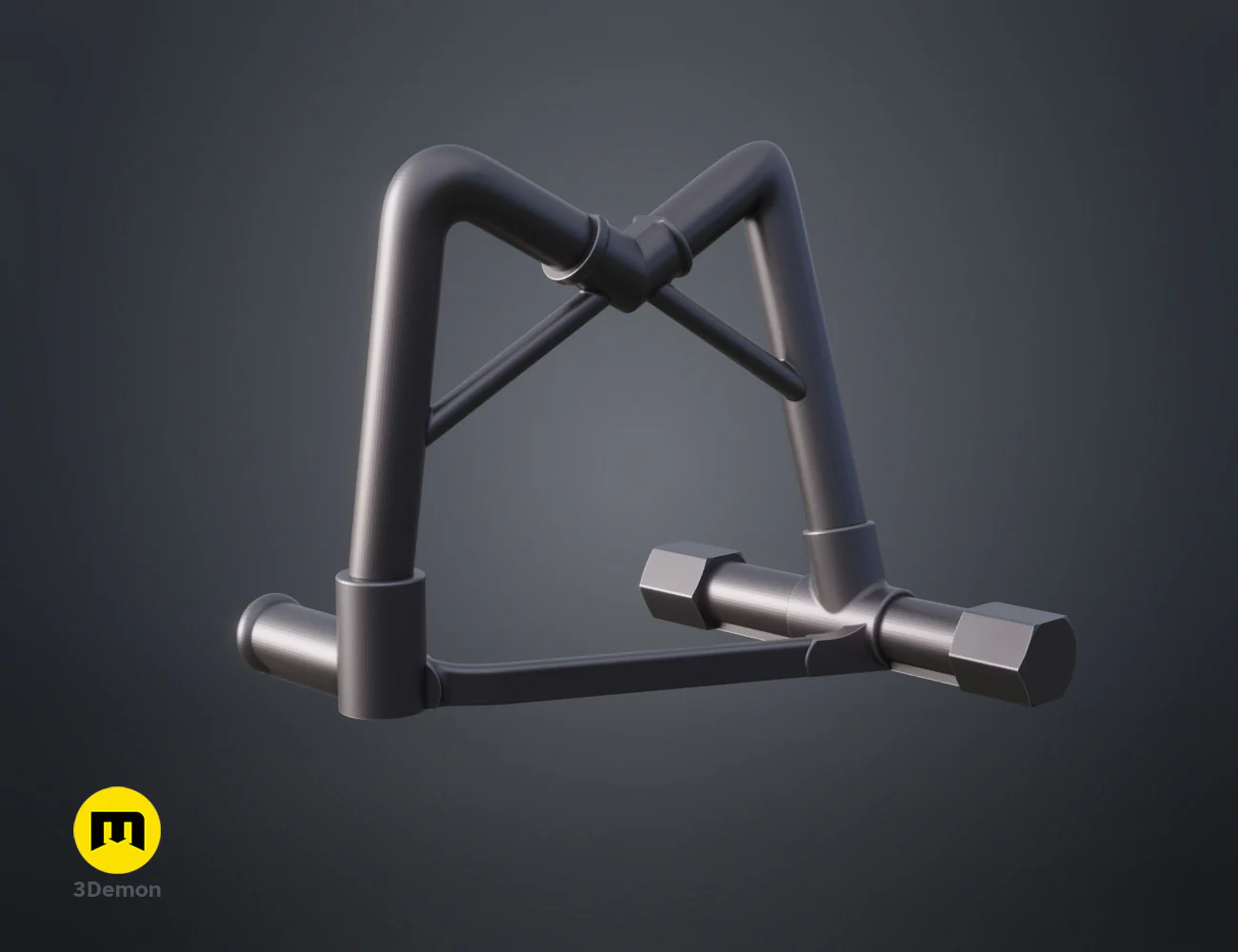

• Top grip is secured by two M6 screws and goes through the blue cover into the middle body tube.

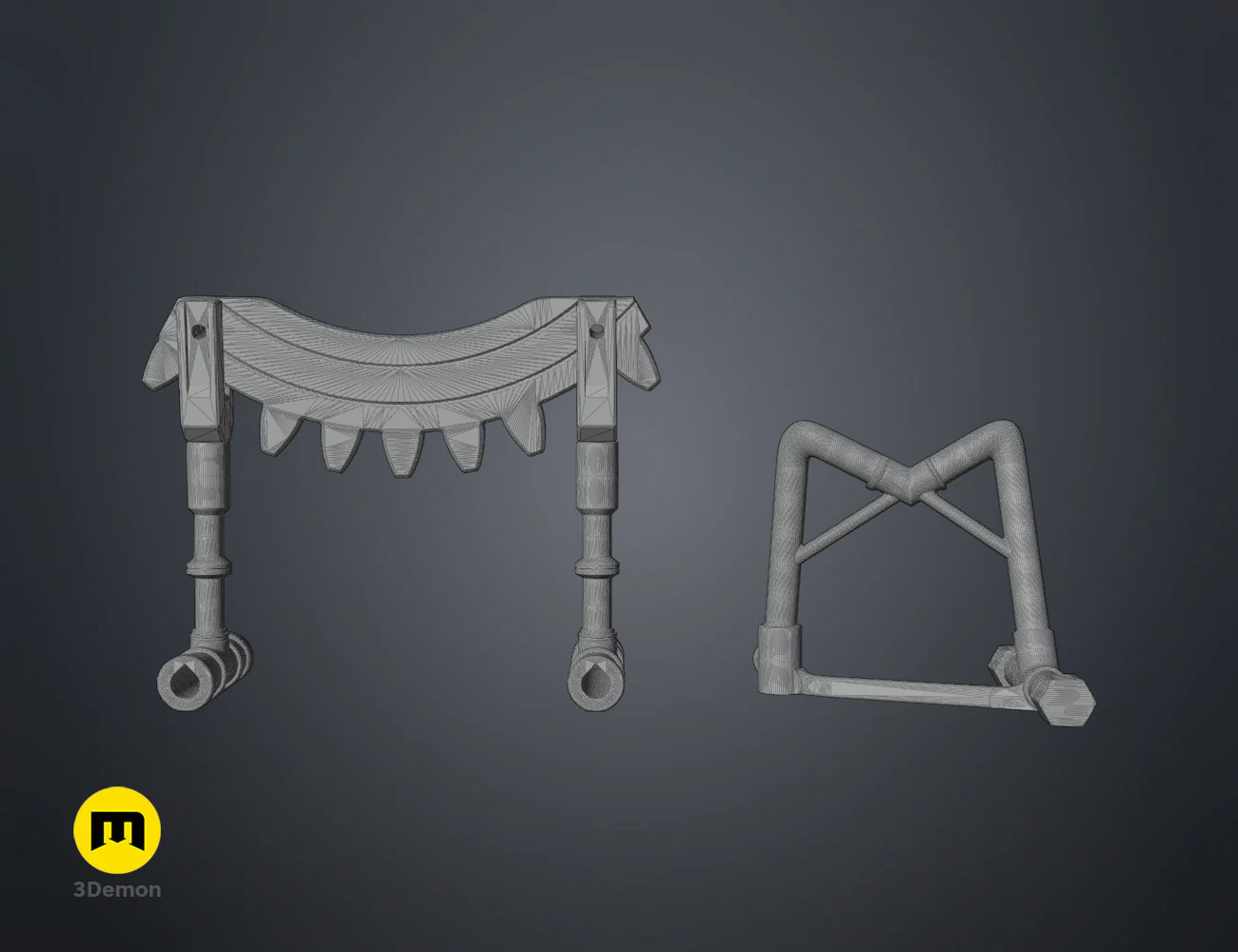

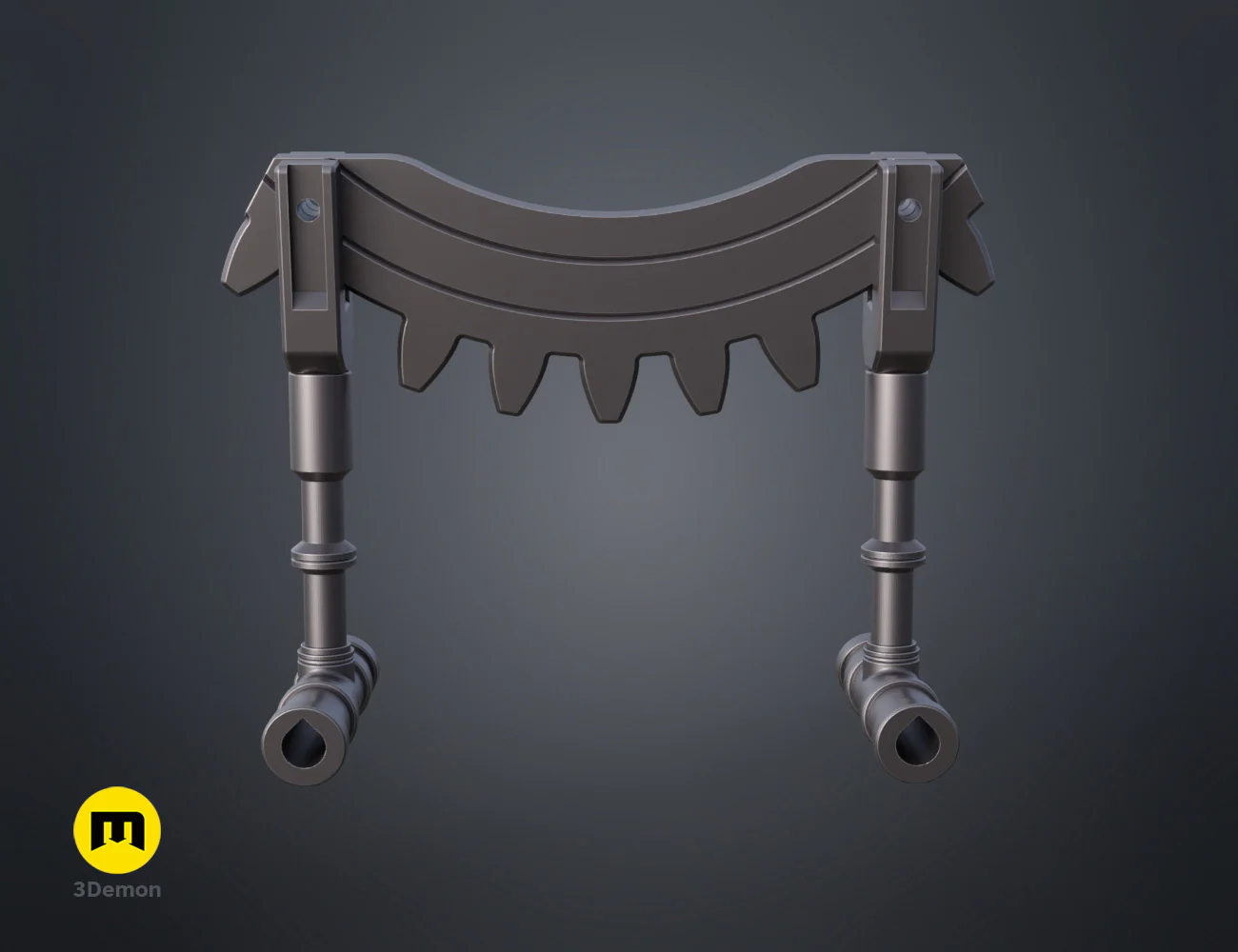

• Upper jaw is connected to the neck using four M3 screws for the simple opening mechanism
• The Neck fits into the Front Ring for final assembly with five M3 screws

This fan-made model was brought to life by 3Demon. We are a group of modeling and 3D printing enthusiasts based in Prague, Czech Republic.

We’ve been making 3D printable models for more than a decade. We make a lot of cosplay accessories but we also make all sorts of interesting 3D models. You can join our community or just look at more of our creations here: Social Media Links
